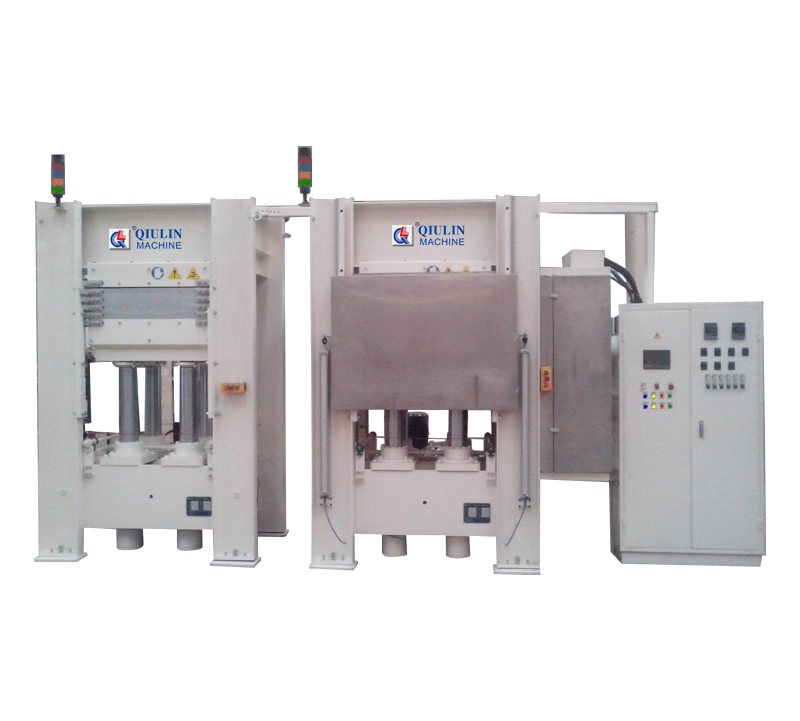

1、熱壓機 Hot press
BY212 x 3/15 (5)H2RC
(1)公稱壓力 Total pressure:1500kN
(2)工作層數 Working layers:5
(3)熱壓板數量及規格 Platen No.& size: 6-1000 x 760 x 60mm
(4)熱壓板間距 Opening: 120mm
(5)進料方向 Loading direction: 1000mm
(6)熱板最高溫度 Max temperature: 2500C
(7)加熱方式 Heating way:電熱管直接加熱(Direct heating by electric heating tube)
(8)加熱時間 Heating time:大約(about) 15-30 min
(9)閉合速度Closing speed: 18.5mm/s
(10)開啟速度Opening speed: 15mm/s
(11)裝機功率Installation power: 126.9kW
(12)供電制式Voltage: 3PE 380V 50Hz
(13)外形尺寸(L x W x H): 2260 x 1390 x 2800mm
(14)重量Weight:約(about)6400Kg
2、冷壓機 Cooling press
BY212 x 3/15 (5)H2RC
(1)公稱壓力 Total pressure:1500kN
(2)工作層數 Working layers:5
(3)熱壓板數量及規格 Platen No.& size: 6-1000 x 760 x 60mm
(4)熱壓板間距 Opening: 120mm
(5)進料方向 Loading direction: 1000mm
(6)冷卻方式Cooling way: 水冷(Water)，冷卻系統用戶自配(Cooling system prepared by the user)
(7)閉合速度Closing speed: 18.5mm/s
(8)開啟速度Opening speed: 15mm/s
(9)裝機功率Installation power: 126.9kW
(10)供電制式Voltage: 3PE 380V 50Hz
(11)外形尺寸(L x W x H): 2260 x 1390 x 2800mm
(12)重量Weight:約(about)6400Kg
